**Product Sheet:**

[Product Sheet (SE)](<https://efuel-cdn.imgix.net/cms/SV_Easee_Ready_Pn_P_Produktblad_e26653d6d2_93c97036c1/SV_Easee_Ready_Pn_P_Produktblad_e26653d6d2_93c97036c1.pdf>)

**Manual:**

[Manual (EN)](<https://efuel-cdn.imgix.net/cms/Nex_Blue_Nex_Blue_Ready_Product_Sheet_EN_V2_0_00001b1a74/Nex_Blue_Nex_Blue_Ready_Product_Sheet_EN_V2_0_00001b1a74.pdf>)

Materials

- Manufacturer: Nexblue
- EFUEL item number: E707
- Dimensions: H: 235 x W: 230 x D: 73 mm
- Wall mounting: H: 206 x W: 130 mm
- Color: Black
- Installation kit: Included
- Enclosure rating (IP): IP44 (IP22 without blanking plug)
- Impact resistance (IK): IK10
- Pre-wired fuse: Edge 2 / Edge Max: MAX 40 A, Delta / Delta Max: MAX 63 A, instantaneous trip, max 75,000 A²s
- UV-resistant: Yes
- Charging power: 1.4 to 22 kW
- Rated current: 6 A single-phase to 32 A three-phase
- Voltage: 3 × 400 V AC / 230 V AC (±10%)
- Mains frequency: 50 Hz
- Installation system: TN, IT, or TT (auto-detection)
- Regulatory compliance: Complies with 2014/35/EU (LVD) \| 2011/65/EU (RoHS). See the DoC for details at https://nexblue.com/pages/doc-declaration-of-conformity
- Terminal tightening torque: 5 Nm
- Stripping length: 12 mm
- Conductor cross-sectional area: 2.5 to 16 mm² (single conductor) / 2.5 to 10 mm² (parallel conductors). Ensure that the PE conductor has the same or larger cross-sectional area than the phase conductor. Use the largest possible conductor cross-sectional area to future-proof the installation.

Specifications

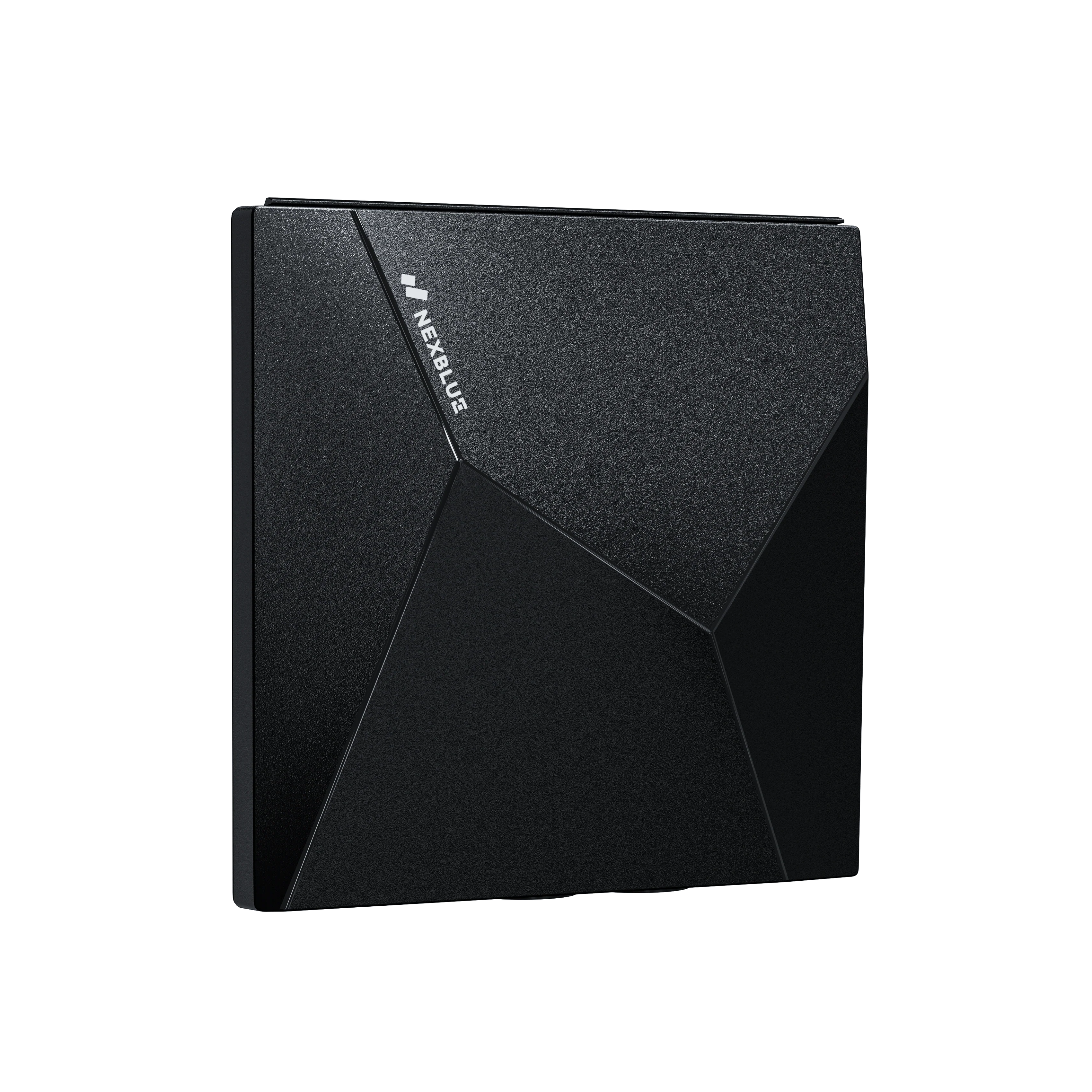

NexBlue Ready is a future-proof charging infrastructure solution, designed for rapid deployment and long-term scalability. Pre-installed backplates and cover plates keep initial costs low while preparing the sites for easy charging upgrades down the road. With NexBlue Ready, you can reduce electrical installation costs, secure parking spaces for future revenue, and take advantage of financing incentives thanks to the pre-installed backplates.

**Pre-installed backplate with blanking plate**

- Future-proof: scalable with NexCore charging upgrades
- The RFID backplate stores configuration data
- NexSync automatically transfers updated settings to future chargers locally


**Cost-effective today, profitable tomorrow**

- Affordable preparation of charging infrastructure
- One-time installation—no reinstallation required (subject to local regulations)
- Secure parking spaces now and lay the groundwork for future revenue
- Take advantage of financial incentives with pre-installed backplates

NexBlue Ready is a future-proof charging infrastructure solution, built for rapid deployment and long-term scalability. Pre-installed backplates and cover plates keep initial costs down while preparing the sites for easy charging upgrades down the road. With NexBlue Ready, you can reduce electrical installation costs, secure parking spaces for future revenue, and take advantage of financing incentives thanks to the pre-installed backplates.

Ready Gen3

Article number: E704

The product fits with

NexBlue

Delta

NexBlue

Delta Max
