**General**Manufacturer: ONEPOLE EFUEL Article numbers: E966, E967, E968 Item no:

**The package includes**ONEPOLE LITE 1500 TWIN DAISY - Zaptec Pro - Single

- 1 x ONEPOLE LITE 1500 TWIN DAISY
- 1 x ONEPOLE LITE Mounting Bracket for Zaptep Pro
- 1 x ONEPOLE LITE Blind Lid
- 1 x Garo spreading terminal block - PLINT 5POL AL/CU MVC-N


ONEPOLE LITE 1500 TWIN DAISY - Zaptec Pro - Twin

- 1 x ONEPOLE LITE 1500 TWIN DAISY
- 2 x ONEPOLE LITE Mounting Bracket for Zaptep Pro
- 1 x Garo spreading terminal block - PLINT 5POL AL/CU MVC-N


ONEPOLE LITE 1500 TWIN DAISY - Zaptec Pro - Side by Side Angeled

- 1 x ONEPOLE LITE 1500 TWIN DAISY
- 1 x ONEPOLE LITE Blind Lid
- 1 x ONEPOLE PRO Bracket for Side by Side Angeled
- 2 x ONEPOLE LITE Mounting Bracket for Zaptec Pro
- 1 x Garo Spreading Terminal Block - PLINT 5POL AL/CU MVC-N


**Technical Specification**

- Bolt pattern C/C 140 mm
- Material: Powder coated salt water resistant aluminum
- Surface treatment: Powder coated according to ISO 12944, Category C4
- Protection class: Class I, must be connected to the protective conductor (PE)
- IP Class: IP44

Specifications

Material

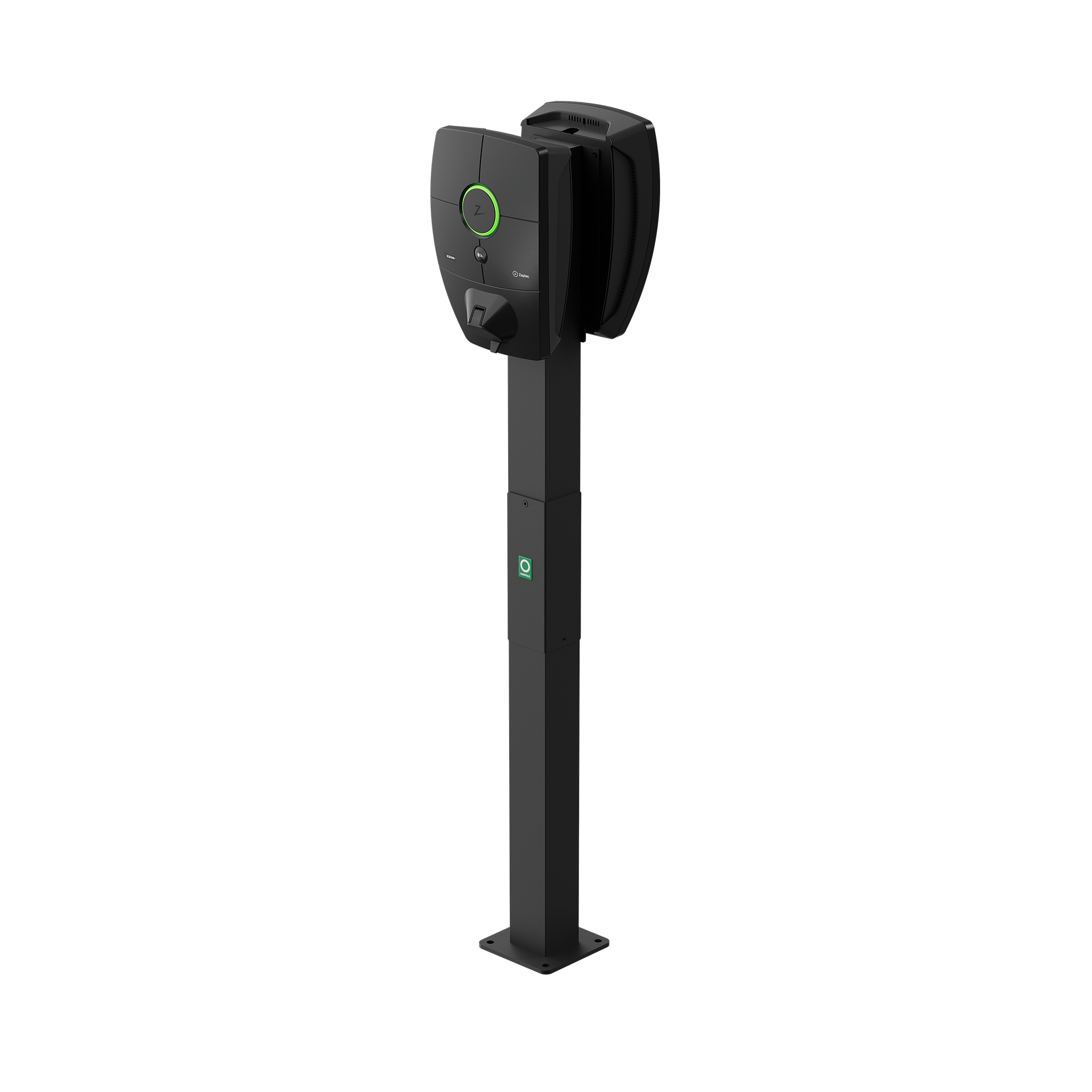

**ONEPOLE Lite 1500 Twin Daisy - Zaptec Pro** is designed for properties that are looking for a stylish and affordable pole with the ability to connect several Zaptec Pro in series. Perfect for, for example, BRF's and companies that want a reliable, discreet and easy-to-install solution.

The post is equipped with a built-in DIN rail and space for a terminal block (a 5-pin terminal block from Garo is included in the package), which makes installation both quick and easy.

**Compact and lightweight design**With a height of 1.5 meters and a profile of 90×90 mm, the Twin Daisy model is lighter than the PRO segment and completely focused on the essentials.

**Stylish and durable construction**Made of seawater resistant aluminum and powder coated with Jotun for maximum protection, even in coastal and exposed environments. The pole comes with bolt pattern C/C 140 mm and is easily mounted on ONEPOLE PRO Base Mount (foundation).

Available in Single, Twin or Side by Side Angled versions for the installation of one or two Zaptec Pro charging stations.

Please note that it is not possible to install two Side by Side Angeled against each other on Onepole LITE Twin Daisy. However, this is possible with the Onepole Pro 1500.

ONEPOLE Lite 1500 Twin Daisy - Zaptec Pro is designed for properties that are looking for a stylish and affordable pole with the ability to connect several Zaptec Pro in series. Perfect for, for example, BRF's and companies that want a reliable, discreet and easy-to-install solution.

The post is equipped with a built-in DIN rail and space for a distribution terminal (a 5-pin distribution terminal from Garo is included in the package), which makes installation both quick and easy.

ONEPOLE Lite 1500 Twin Daisy - Zaptec Pro

Antal

ONEPOLE LITE 1500 TWIN DAISY - Zaptec Pro

Lite 1500 Twin Daisy - Zaptec Pro

Single

Twin

Side by Side Angeled

[**Onepole Pro 1500**](<https://www.efuel.se/produkter/laddstolpar/onepole-pro-1500>)

**General:**

- Manufacturer: ONEPOLE
- EFUEL article number: E550
- Lev. article no: Q9MSL


**Technical specification**

- Net weight: 7,32 kg
- Gross weight: 7,75 kg
- Net dimensions: 1494x220x220 mm
- Gross dimensions: 1515x225x225 mm
- Material: Powder coated seawater resistant aluminum
- Surface treatment: Powder coating ISO 12944, Category C4
- Protection class: Class I, must be connected to PE


Accessories:

- 4 pcs. M5-12 UH
- 1 pc. M5 nut with washers
- 4 pcs. M20 Vinyl washer
- 1 pc. Blind cap
- 1 pc. Access panel
- 1 pc. Toplock


[**ONEPOLE PRO Mounting Bracket - Zaptec Pro**](<https://www.efuel.se/produkter/fastplattor/onepole-pro-mounting-bracket-zaptec-pro>)

**General:**

- Manufacturer: ONEPOLE
- EFUEL article number: E554
- Lev. article no: Q9TGX


**Technical specification**

- Net weight: 0,42 kg
- Gross weight: 0,5 kg
- Net dimensions: 350x160x5 mm
- Gross dimensions: 365x165x20 mm
- Material: Powder coated sea steel aluminum
- Surface treatment: Powder coating ISO 12944, Category C4


Accessories:

- 2 pcs. M6x16 UH
- 4 pcs. M5x8 CH.


[**ONEPOLE PRO Bracket for Side by Side Installation Kit**](<https://www.efuel.se/produkter/tillbehor-laddstolpar/onepole-pro-bracket-side-by-side>)

**General:**

- Manufacturer: ONEPOLE
- EFUEL article number: E562
- Lev. article no.: Q9MSW


**Technical specification**

- Net weight: 1,66 kg
- Gross weight: 1,86 kg
- Net dimensions: 370x310x60 mm
- Gross dimensions: 375x340x70 mm
- Material: Powder coated sea steel aluminum
- Surface treatment: Powder coating ISO 12944, Category C4


Accessories:

- 2 pcs. M6-16 CH
- 2 pcs. TET 14-20


[**ONEPOLE PRO Bracket for Quattro installation kit**](<https://www.efuel.se/produkter/tillbehor-laddstolpar/onepole-pro-bracket-for-quattro-installation-kit>)

**General**Manufacturer: ONEPOLE EFUEL part number: E577 Part number: Q9MSS

**Technical Specification**

- Net weight: 1,52 kg
- Gross weight: 2,14 kg
- Net dimensions: 300x300x30 mm
- Gross dimensions: 310x310x75 mm
- Material: Powder coated aluminum resistant to seawater
- Surface treatment: Powder coated according to ISO 12944, Category C4


Accessories:

- 4 pcs. M6x16 CH screws
- 4 pcs. TET 14-20
- 1 pc. Blind cap 2x30mm (Q9TN0)
- 1 pc. Blindlock 2x30mm (QB1WJ)


[**ONEPOLE PRO Blind Lid Octo**](<https://www.efuel.se/produkter/tillbehor-laddstolpar/onepole-blind-lid-octo>)

**General**Manufacturer: ONEPOLE EFUEL Part Number: E594 Part Number: QB1WH Technical Specification

Net weight: 0,30kg Gross weight: 0,36kg Net dimensions: 310x115x3mm Gross dimensions: 315x125x30mm Material: Powder coated marine resistant

**Product sheet**

**ONEPOLE PRO 1500**

[Download product sheet (EN)](<https://efuel-cdn.imgix.net/cms/ONEPOLE_PRO_1500_with_footplate_CC_160_3ff9d9c36a/ONEPOLE_PRO_1500_with_footplate_CC_160_3ff9d9c36a.pdf>)

**ONEPOLE PRO Mounting Bracket - Zaptec Pro**

[Download product sheet (EN)](<https://efuel-cdn.imgix.net/cms/ONEPOLE_PRO_Mounting_Bracket_for_Zaptec_Pro_2acd705ab3/ONEPOLE_PRO_Mounting_Bracket_for_Zaptec_Pro_2acd705ab3.pdf>)

**ONEPOLE PRO Bracket for Side by Side Installation Kit**

[Download product sheet (EN)](<https://efuel-cdn.imgix.net/cms/ONEPOLE_PRO_Bracket_for_Side_by_Side_installation_kit_175730b6c2/ONEPOLE_PRO_Bracket_for_Side_by_Side_installation_kit_175730b6c2.pdf>)

**ONEPOLE PRO Bracket for Quattro installation kit**

[Download product sheet (EN)](<https://efuel-cdn.imgix.net/cms/ONEPOLE_PRO_Bracket_for_Quattro_installation_kit_d2649a3695/ONEPOLE_PRO_Bracket_for_Quattro_installation_kit_d2649a3695.pdf>)

**ONEPOLE PRO Blind Lid Octo**

[Download product sheet (EN)](<https://efuel-cdn.imgix.net/cms/ONEPOLE_PRO_Blind_Lid_Octo_ba433192d3/ONEPOLE_PRO_Blind_Lid_Octo_ba433192d3.pdf>)

**Manuals**

[ONEPOLE Simple Guide (EN)](<https://efuel-cdn.imgix.net/cms/ONEPOLE_Simple_guide_2024_Versjon_1_ENG_f4d7e31d71_2_f8ad7d8d96/ONEPOLE_Simple_guide_2024_Versjon_1_ENG_f4d7e31d71_2_f8ad7d8d96.pdf>)

[ONEPOLE User Manual - Pedestal With Asseccories (EN)](<https://efuel-cdn.imgix.net/cms/User_Manual_ONEPOLE_Rev_1_0_eb843c4ca8/User_Manual_ONEPOLE_Rev_1_0_eb843c4ca8.pdf>)

**Summary of variants**

The packages include the following items

**Uno [1+0]**

1 [**Onepole Pro 1500**](<https://www.efuel.se/produkter/laddstolpar/onepole-pro-1500>)

1 [**ONEPOLE PRO Mounting Bracket - Zaptec Pro**](<https://www.efuel.se/produkter/fastplattor/onepole-pro-mounting-bracket-zaptec-pro>)

**Duo [1+1]**

1 [**Onepole Pro 1500**](<https://www.efuel.se/produkter/laddstolpar/onepole-pro-1500>)

2 [**ONEPOLE PRO Mounting Bracket - Zaptec Pro**](<https://www.efuel.se/produkter/fastplattor/onepole-pro-mounting-bracket-zaptec-pro>)

**Side by side [2+0]**

1 [**Onepole Pro 1500**](<https://www.efuel.se/produkter/laddstolpar/onepole-pro-1500>)

2 [**ONEPOLE PRO Mounting Bracket - Zaptec Pro**](<https://www.efuel.se/produkter/fastplattor/onepole-pro-mounting-bracket-zaptec-pro>)

1 [**ONEPOLE PRO Bracket for Side by Side Installation Kit**](<https://www.efuel.se/produkter/tillbehor-laddstolpar/onepole-pro-bracket-side-by-side>)

**Side by side x 2 [2+2]**

1 [**Onepole Pro 1500**](<https://www.efuel.se/produkter/laddstolpar/onepole-pro-1500>)

4 [**ONEPOLE PRO Mounting Bracket - Zaptec Pro**](<https://www.efuel.se/produkter/fastplattor/onepole-pro-mounting-bracket-zaptec-pro>)

2 [**ONEPOLE PRO Bracket for Side by Side Installation Kit**](<https://www.efuel.se/produkter/tillbehor-laddstolpar/onepole-pro-bracket-side-by-side>)

**Quattro [1+1+1+1]**

1 [**Onepole Pro 1500**](<https://www.efuel.se/produkter/laddstolpar/onepole-pro-1500>)

4 [**ONEPOLE PRO Mounting Bracket - Zaptec Pro**](<https://www.efuel.se/produkter/fastplattor/onepole-pro-mounting-bracket-zaptec-pro>)

1 [**ONEPOLE PRO Bracket for Quattro installation kit**](<https://www.efuel.se/produkter/tillbehor-laddstolpar/onepole-pro-bracket-for-quattro-installation-kit>)

4 [**ONEPOLE PRO Blind Lid Octo**](<https://www.efuel.se/produkter/tillbehor-laddstolpar/onepole-blind-lid-octo>)

What is included in the package?

The **ONEPOLE PRO 1500** pole allows countless combinations and customization possibilities for the installation of charging boxes. This pole package is adapted with back plates for **Zaptec Pro**.

**Ease of variant selection** Easily choose the variant that suits your needs. Whether you're installing one charging station or several, just choose the variant that matches the number of charging stations for your parking lot: **[1+0]**, **[1+1]**, **[2+0]**, **[2+2]** or **Quattro (1+1+1+1)**. You can then easily add other options such as foundations, lighting, roofs and cable holders to create a complete solution tailored to your needs.

ONEPOLE is made of seawater-resistant aluminum and coated with Jotun powder coating for optimal protection, even along the coastline. Supplied with center distance of bolts C/C 160 mm for attachment to standard foundations. The footplate is designed for versatile mounting options, making it easy to install both on ceilings and floors.

with a 5-year warranty, it can easily be complemented with various accessories such as lighting. Durable with 75% recyclable aluminum, it is 95% recyclable at the end of its lifetime.

**Need help building your ONEPOLE PRO?**

Try the ONEPOLE configurator [here](<https://www.onepole.no/sv/configurator/stage/type>)

**Larger order? Request a quote via [partner@efuel.se](<partner@efuel.se>)**

The ONEPOLE PRO 1500 pole allows countless combinations and customization possibilities for the installation of charging stations. This pole package is adapted to Zaptec Pro.

Ease of variant selection Easily choose the variant that suits your needs. Whether you're installing one charging station or several, just choose the variant that matches the number of charging stations for your parking lot: [1+0], [1+1], [2+0], [2+2] or Quattro (1+1+1+1). You can then easily add other options such as foundations, lighting, roofs and cable holders to create a complete solution tailored to your needs.

ONEPOLE is made of seawater-resistant aluminum and coated with Jotun powder paint for optimal protection, even along the coastline. ONEPOLE is available in the RAL color of your choice to suit your environment (made to order). Supplied with center distance of bolts C/C 160 mm for attachment to standard foundations. The footplate is designed for versatile mounting options, making it easy to install both on ceilings and floors.

- 5 years warranty
- Modular and universal pole that fits most of the known charging stations on the market
- Durable with 75% recyclable aluminum and is 95% recyclable after its lifetime

Lite 1500 Twin Daisy - Zaptec Pro

Article number: E966-E968
